Name: NV10 USB+

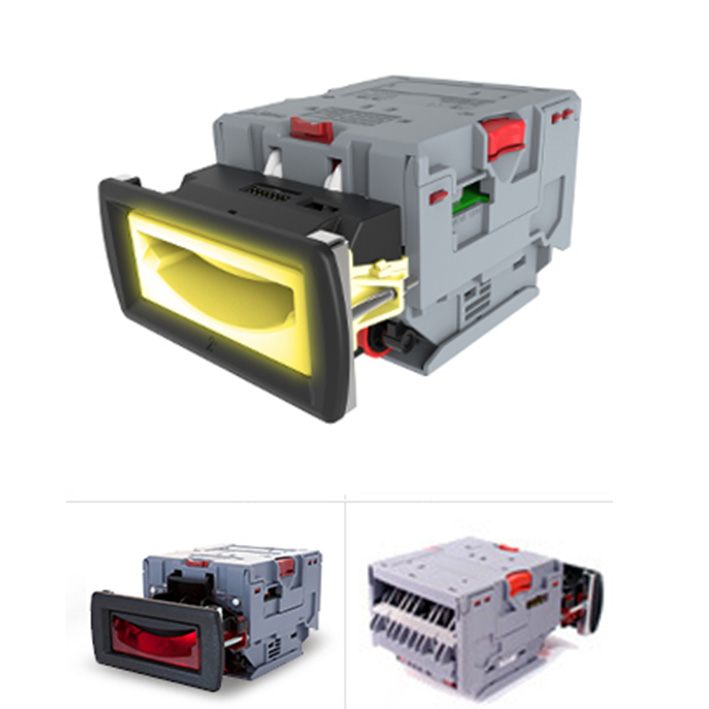

The NV10 USB+ is a compact, stackerless banknote validator suitable for most applications. Accepting over 100 different world currencies the NV10 USB+ is a truly global product. A field proven validator the unit supports industry standard protocols, is simple to integrate and maintain.
The NV10 USB+ is ideal for amusement and vending applications and comes with two bezel width options depending on currency.
Features
• Compact stackerless design
• Proven field reliability
• Future proof
• One build standard for Global Application
Technical Specification
Power
Requirements \ Standby \ Running \ Peak : 12 V \ 0.2 A \ 1 A \ 1.5 A
Bezel Options : 66/82 mm width
Extended
Note Dimensions
Width \ Length : 60-82mm \ 115-162mm
Protocols : SSP \ ccTalk \ MDB \ Pulse \ Parallel \ Binary \ Serial
Interfaces : USB \ Open Collector
MCBF : 200,000
Weight : 0.55KG
