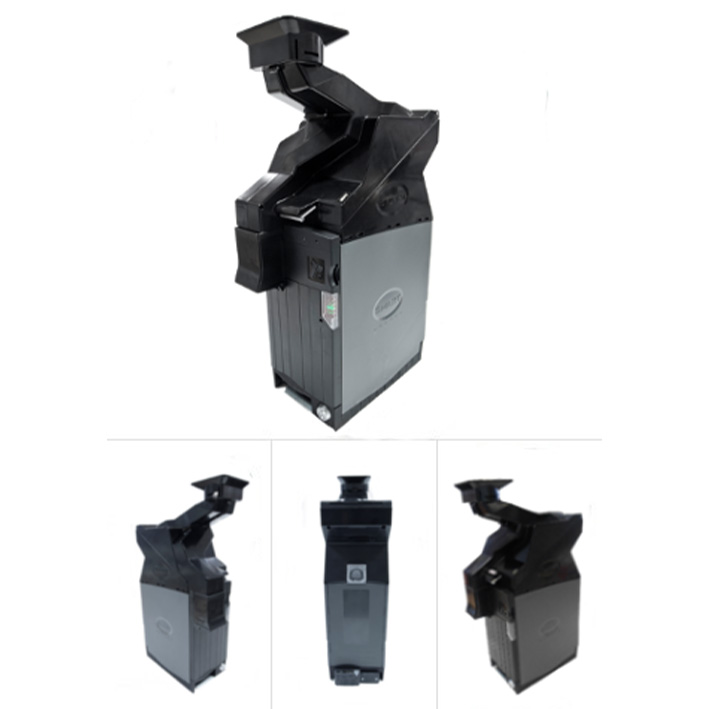

Name: SMART Coin System
The SMART Coin System is a state of the art bulk coin validator, mixed coin hopper and recycler in one.
The unit validates, discriminates and stores mixed coins, eliminating coin starvation & the need for multiple hoppers.
With a market leading coin hopper capacity and fully audited, efficient refills, the SMART Coin System is designed to eliminate coin starvation and significantly reduce operator collection costs. Operating at a market leading 12 coins per second the SMART Coin System improves operator cashflow, significantly reducing collection costs.
Features
• State of the art bulk coin validator, hopper & recycler
• Eliminates coin starvation
• Market leading coin capacity, acceptance and payout speed
• Lowest cost of ownership
• High security - multi frequency sensing technology
Technical Specification
* SCS supplied in different hardware versions depending on the currency used *
Power
Requirements \ Standby \ Running \ Peak: 24V \ 200 mA \ 3 A \ 6.5 A
Payout Speed : Up to 12 coins per second
Coin Capacity : 1400 (€1) \ 1050 (£1) \ 1500 (quarters) \
Mixed Coin Capacity : €2x250+€1x700+50cx300
Protocols : SSP \ ccTalk
Interfaces : USB with IF17 \ Open collector
Coin Dimensions : Diameter: 18 - 28.5 mm \ Thickness: 1.65 - 3.2 mm
MCBF : 100,000
Weight : 4.1 KG
