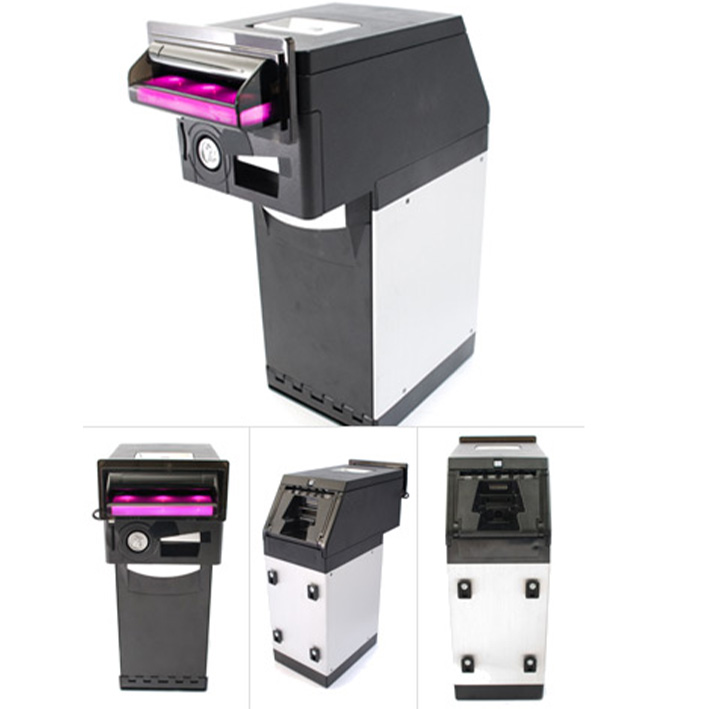

Name: NV200
The NV200 boasts exceptional note handling on banknotes up to 85 mm wide and standard industry bar codes.
The NV200 is a secure, field proven banknote validator. With a lockable, removable cashbox that can hold up to 1000 notes it is ideal for global high volume applications. The unit can accept notes at acute angles in all four ways as auto-centering technology straightens notes before reading.
An add-on modules is available, SMART Payout to allow mixed denomination note recycling.
Learn more about our Spectral Range of products: NV200 Spectral
Features
• Exceptional note handling
• Suitable for global applications
• Takes more cash
• Add on recycler available
Technical Specification
Power
Requirements \ Standb \ Running \ Peak: 12 V \ 400 mA \ 1.5 A \ 3 A
Bezel Options \ Standard bezel \ Metal bezel \ Self aligning bezel \ Various illumination options
Note Dimensions: Width \ Length : 60 - 85 mm \ 115 - 170 mm
Protocols : SSP \ ccTalk \ MDB \ IF003
Interfaces : USB \ RS232 \ Open Collector
Cashbox Options : 500 notes \ 1000 notes
MCBF : 200,000
Weight : 3.0 KG
